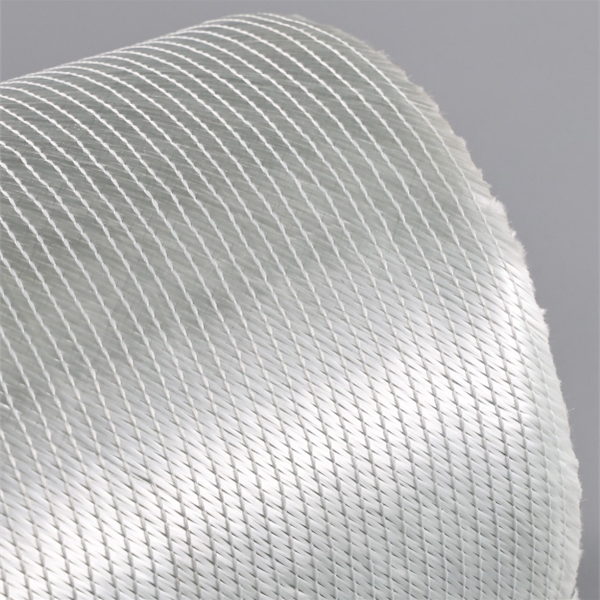

Fiberglass triaxial fabric is made of fiberglass direct roving parallel aligned in 0°,+45°,-45°or +45°,90°,-45°directions, then stitched together with or without chopped strand layer as combo mat. It is compatible with Polyester, Vinyl and Epoxy resin and widely used in boat building, wind energy, automotive, sports equipment, containers etc, suitable Vacuum infusion, hand lay-up, pultrusion, RTM forming processes.  Product List   Code Weight (g/m2)   (g/m2) +45° (g/m2) 90° (g/m2) -45° (g/m2) Chop layer (g/m2) ELTX600 600 300 150 - 150 - ELTX750 750 300 225 - 225 - ETTX750 750 - 200 350 200 - ELTX900 900 300 300 - 300 - ETTX900 900 - 225 450 225 - ELTX1200 1200 700 250 - 250 - ELTXM1200/300 1500 700 250 - 250 300 ETTXM1200/300 1500 - 250 700 250 300   Remarks: Roll width:   Standard width in1250mm, 1270mm, and other sizes depends on customer’s real needs, available in 200mm to2600mm. Packing:   Fiberglass triaxial fabric is usually rolled in a paper tube with inner diameter 76mm. The roll is warped with plastic film, then put into carton. Lay the rolls horizontally, and can be loaded on pallets and bulk in container. Storage:   The product should be stored in a cool, water-proof area. It is recommended that the room temperature and humidity be always maintained at 15 ℃   to 35 ℃   and 35% to 65% respectively. Please keep the product in its original packaging before being used, avoiding moisture absorption.
