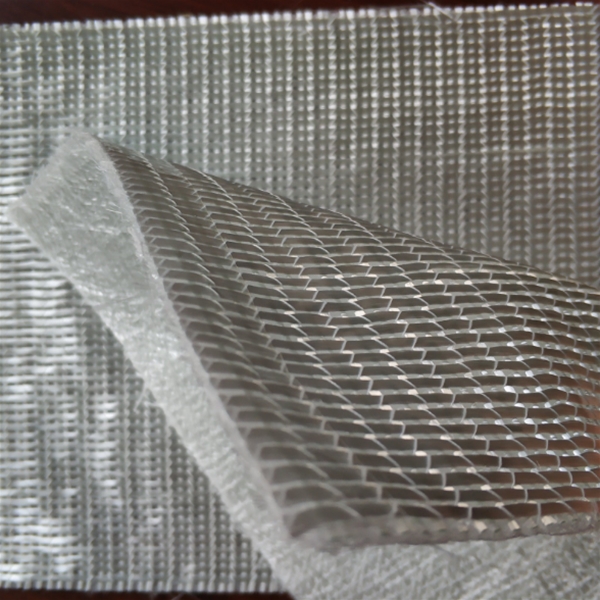

Multiaxial core mat is made of biaxial fabric (0°and 90°) combined middle layer PP, PET or Nylon core material and plus the chopped strands layer, then stitched together like sandwich design. It is compatible with Polyester, Vinyl and Epoxy resin and widely used in boat building, wind energy, automotive, train parts, storage tanks etc, suitable for RTM, Vacuum infusion, hand lay-up forming processes.    Product List   Code Weight (g/m 2 )     Biaxial layer      (g/m2) Core layer   (g/m 2 ) Chop layer (g/m2) Moisture     content Wet speed (≤S) ELTNM600/180/150 930 600 180 150 ≤0.2 ≤60 ELTNM600/180/300 1080 600 180 300 ≤0.2 ≤60 ELTNM600/180/600 1380 600 180 600 ≤0.2 ≤60 ELTNM600/250/600 1450 600 250 600 ≤0.2 ≤60 ELTNM800/250/300 1350 800 250 300 ≤0.2 ≤60 ELTNM800/250/450 1500 800 250 450 ≤0.2 ≤60 ELTNM800/250/600 1650 800 250 600 ≤0.2 ≤60   Remarks: Roll width:   Standard width in 1270mm, and other sizes depends on customer’s real needs, available in 200mm to 2600mm. Packing:   Fiberglass multiaxial core mat is usually rolled in a paper tube with inner diameter 76mm. The roll is warped with plastic film, then put into carton. Lay the rolls horizontally, and can be loaded on pallets and bulk in container. Storage:   The product should be stored in a cool, water-proof area. It is recommended that the room temperature and humidity be always maintained at 15 ℃   to 35 ℃   and 35% to 65% respectively. Please keep the product in its original packaging before being used, avoiding moisture absorption.
